Aprilia Öhlins – Fork Set 2B003405 (LH) + 2B003406 (RH)
Original set sold in pair: precision, stability and full adjustability
Product Description

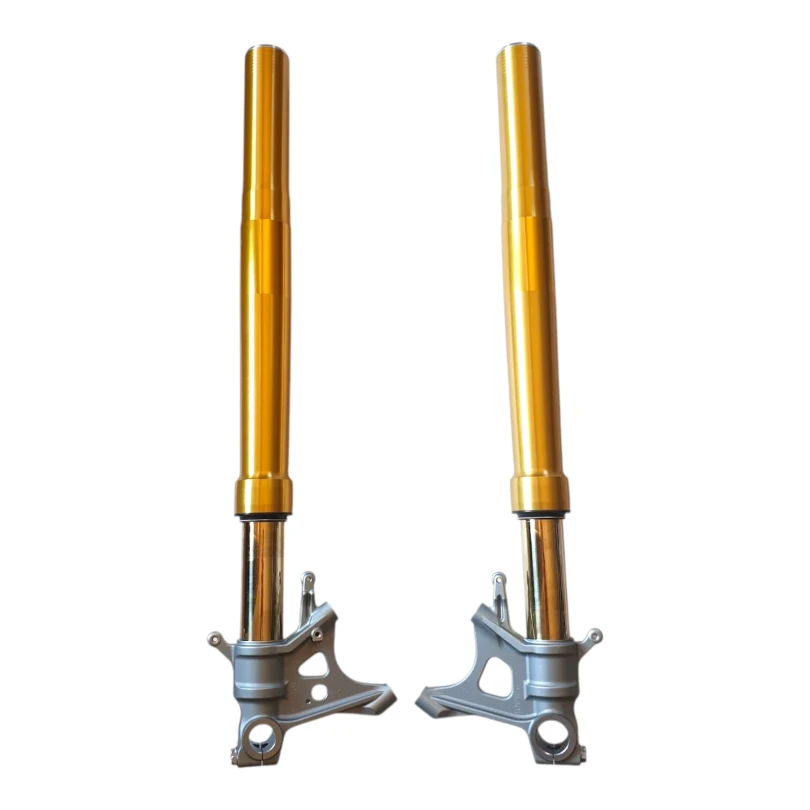

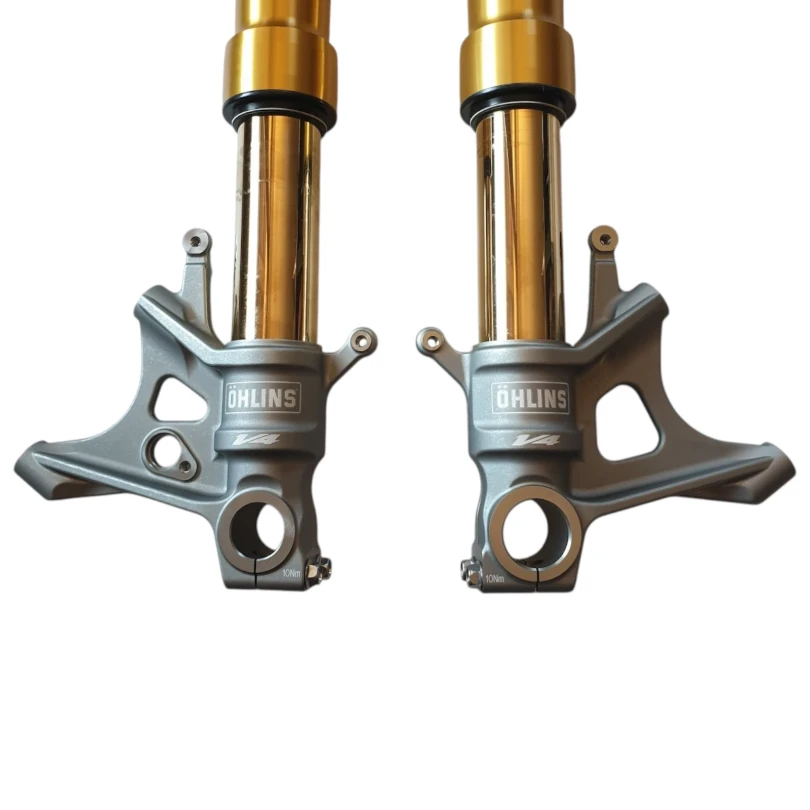

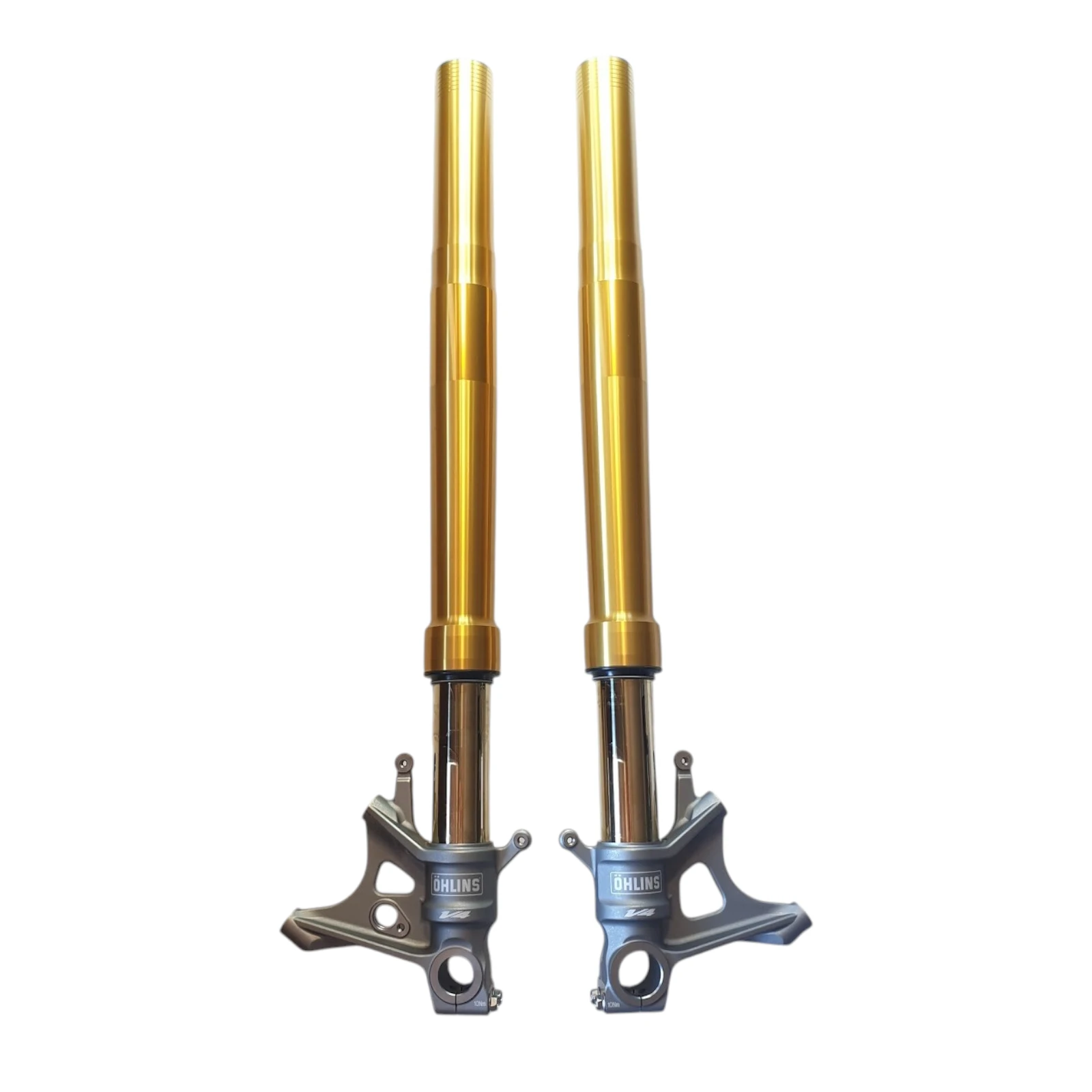

Kit including two genuine Öhlins fork legs for Aprilia: 2B003405 (left) and 2B003406 (right), designed for RSV4/TUONO V4 with steering clamps Ø51 mm (upper) and Ø56 mm (lower). Upside-down fork with NIX cartridge and TiN coating on the stanchions, engineered to provide braking support, front-end feel and quick set-up adjustments. Sold exclusively as a pair LH+RH only for Tuono Factory models equipped with Öhlins. (Not compatible with Sachs triple clamp).
Product Advantages

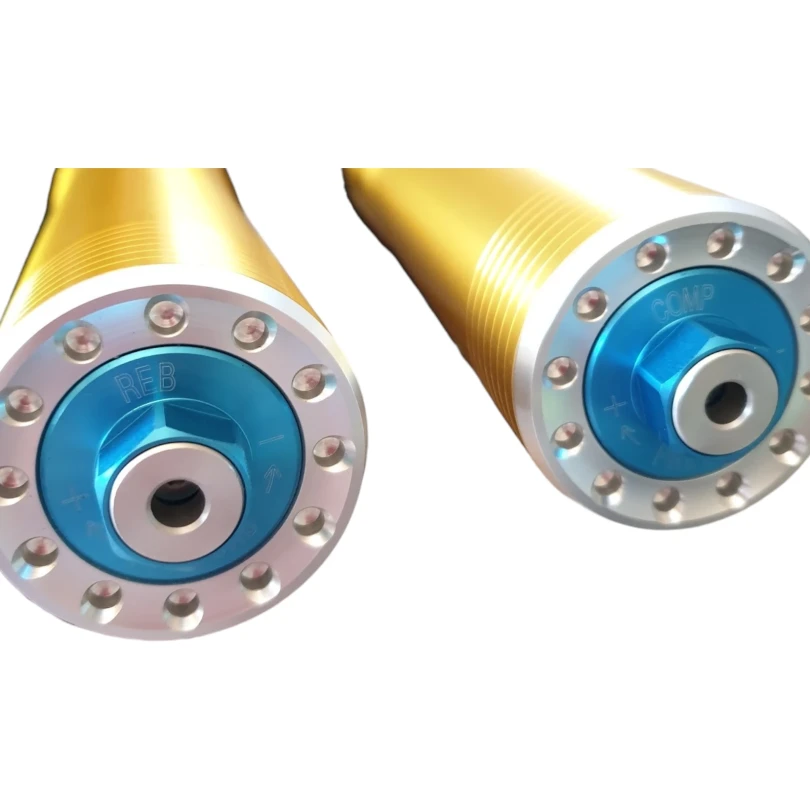

Öhlins NIX cartridge: compression on the left leg, rebound on the right; spring preload on both legs.
Ø43 mm stanchions with TiN: maximum smoothness and consistent performance.
Wide adjustability: easily adaptable to road, track days and sporty riding.
Technical Details
Stanchion diameter: Ø43 mm
Travel: 120 mm (Note: RSV4 uses forks with 120/125/130 mm travel)
Cartridge: Öhlins NIX (separate function: comp L / reb R)
Adjustments: spring preload (both), compression (L), rebound (R)
Caliper mount: radial 100 mm (bolt spacing), bolts M10x1.25
Axle: Ø30 mm and Ø25 mm
Clamp diameters: upper Ø51 mm, lower Ø56 mm (not compatible with Sachs 53 mm triple clamp)
