Flyhammer Kit for Engine Height Modification +0 for RSV4
Flyhammer Kit for Engine Height Modification +0 for RSV4

RSV4 Engine Height Adjustment Kit '+0' for by FlyHammer

Perfect Your Aprilia's Chassis Setup

Description

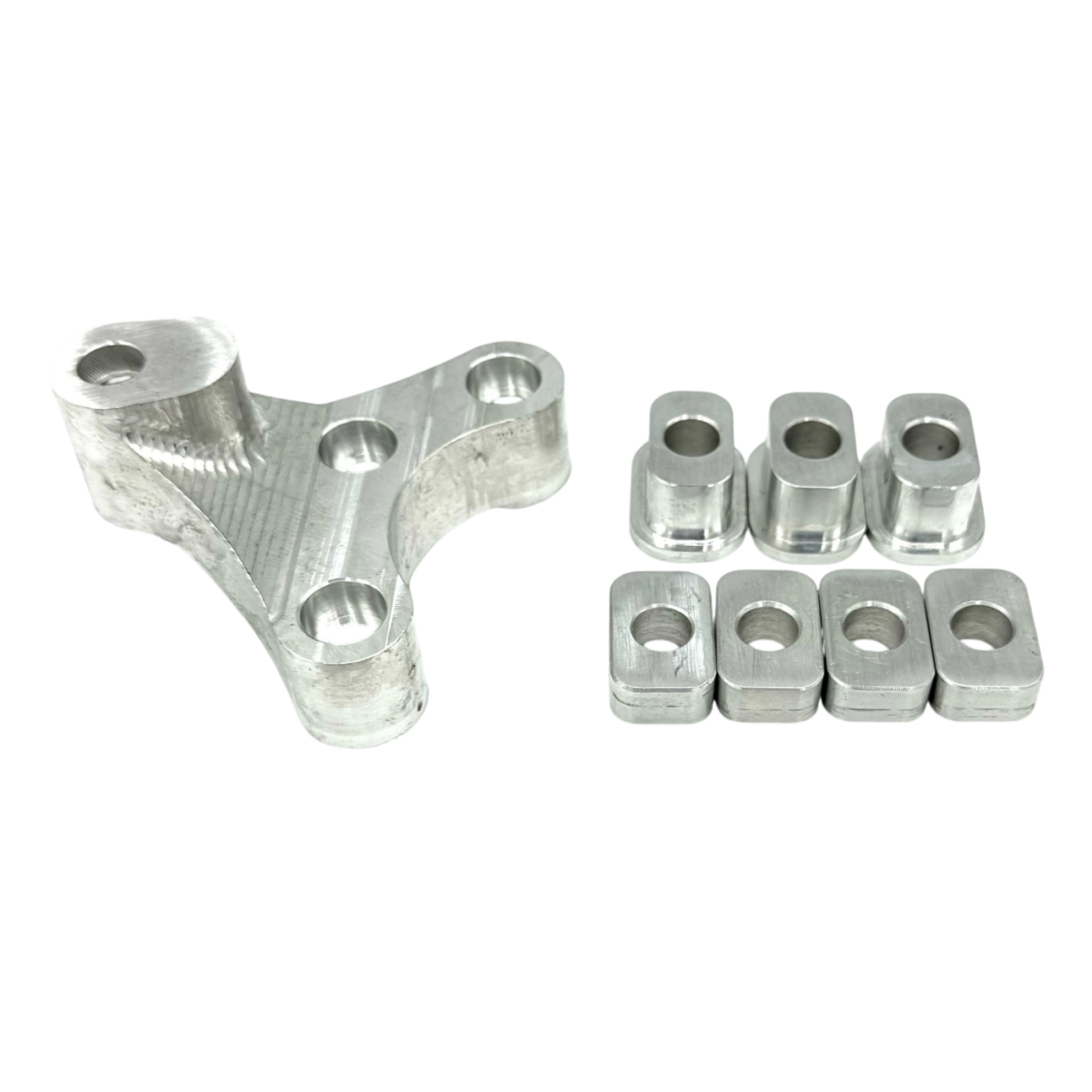

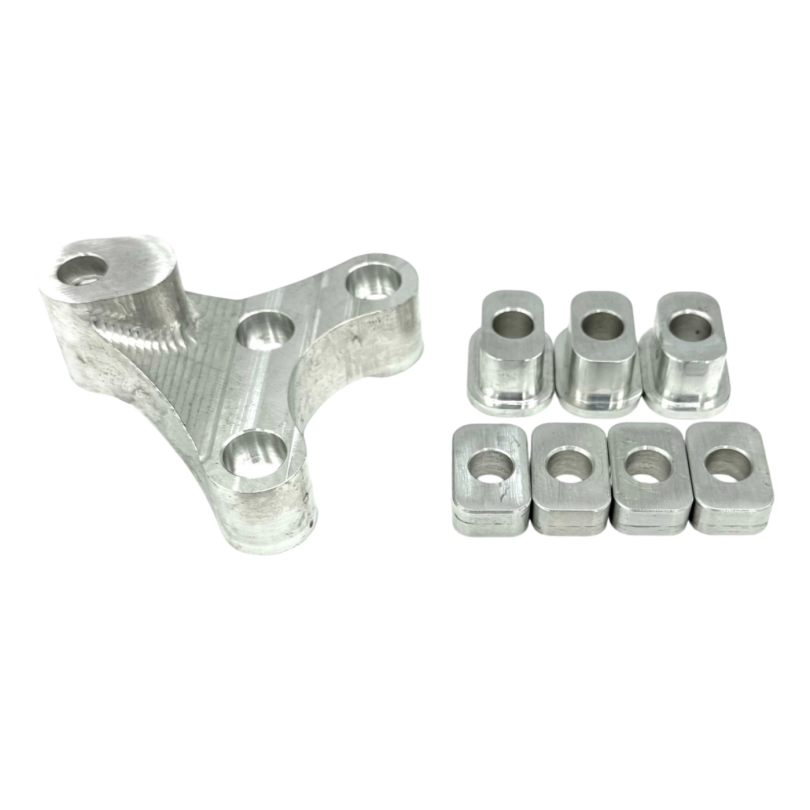

This kit, CNC-machined from solid material by FlyHammer, allows you to adjust the engine height on the frame.

Technical Details

For RSV4 models up to 2012, the engine is positioned at ‘+5’ mm. RSV4 models from 2013 to 2015 have the engine set to position ‘0’. RSV4 models from 2016 to 2024 have the engine set to position ‘-5’ mm. With this kit, you can adjust the engine height for all RSV4 versions. The most commonly used offset is usually 0 mm. If a different measurement is required, it must be specified at the time of order selection:
  • 0 mm (default unless otherwise specified)
  • +/- 2.5 mm
OFFSET 0 mm
Compatibility RSV4 2009-2014 RSV4 RF 2015-2016 RSV4 RF 2017-2020 RSV4 1100 E5 2021-

Flyhammer Engine Position Kit '+0' for For Rsv4

  • RSV4 1100 — EU 21-24 / US 21-25
  • RSV4 — 2017-2020
  • RSV4 1000 — 2015-2016
  • RSV4 1000 — 2009-2014
€ 172,13
Racing accessories
Available in the package
0mm engine mount kit and swingarm pivot +/- 2.5mm
FlyHammer
Flyhammer Chassis Adjustment Kit for RSV4 - +0 Engine Position and +/-2.5 mm Swingarm Pivot
€ 225,00
 - 10%
instead of € 250,00
