Key and Immobilizer Removal Kit for Aprilia RS660 and Tuono 660
RS660 Key Block Removal: lighten your bike for track use!
Product Description

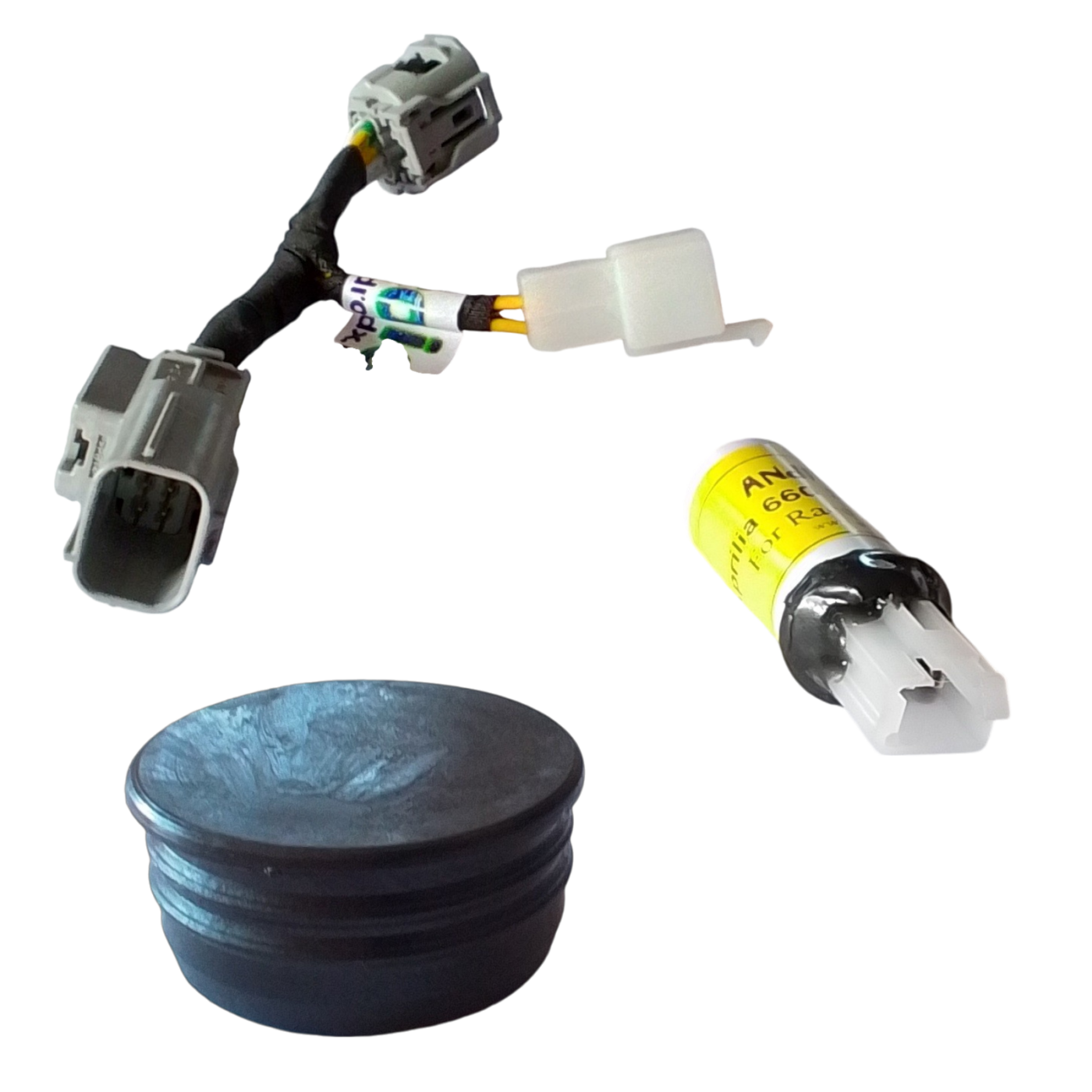

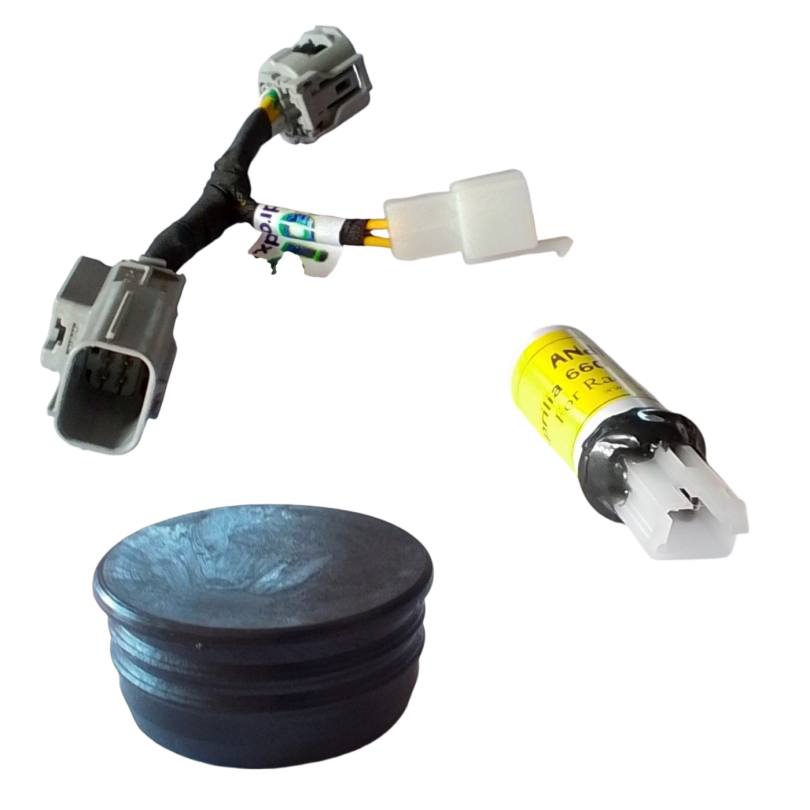

The kit enables the RS660 key block removal and ensures continuous transponder recognition. It includes a Dummy-key that simulates the key, a wiring harness that replaces the removed key block (using the emergency button to power the dashboard), and a cap to cover the hole on the steering plate.
Benefits of the Key Removal Kit
Start the bike without using the original key
Compatible with the original dashboard
Who Is This Product For?
This kit, primarily designed for track use, allows standard dashboards to be used on track-prepared bikes without needing keys to start the vehicle. The dummy-key simulates the transponder function, enabling the dashboard to power up as soon as it receives power.
Technical Specifications
To use the kit, the dummy-key must be coded at a key duplication shop or through an external diagnostic tool.

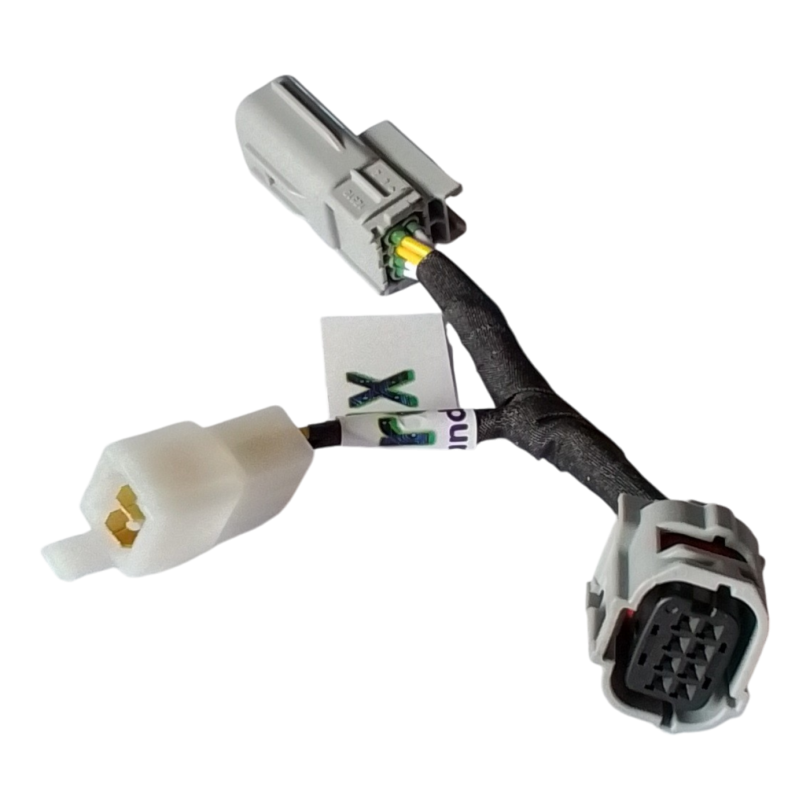

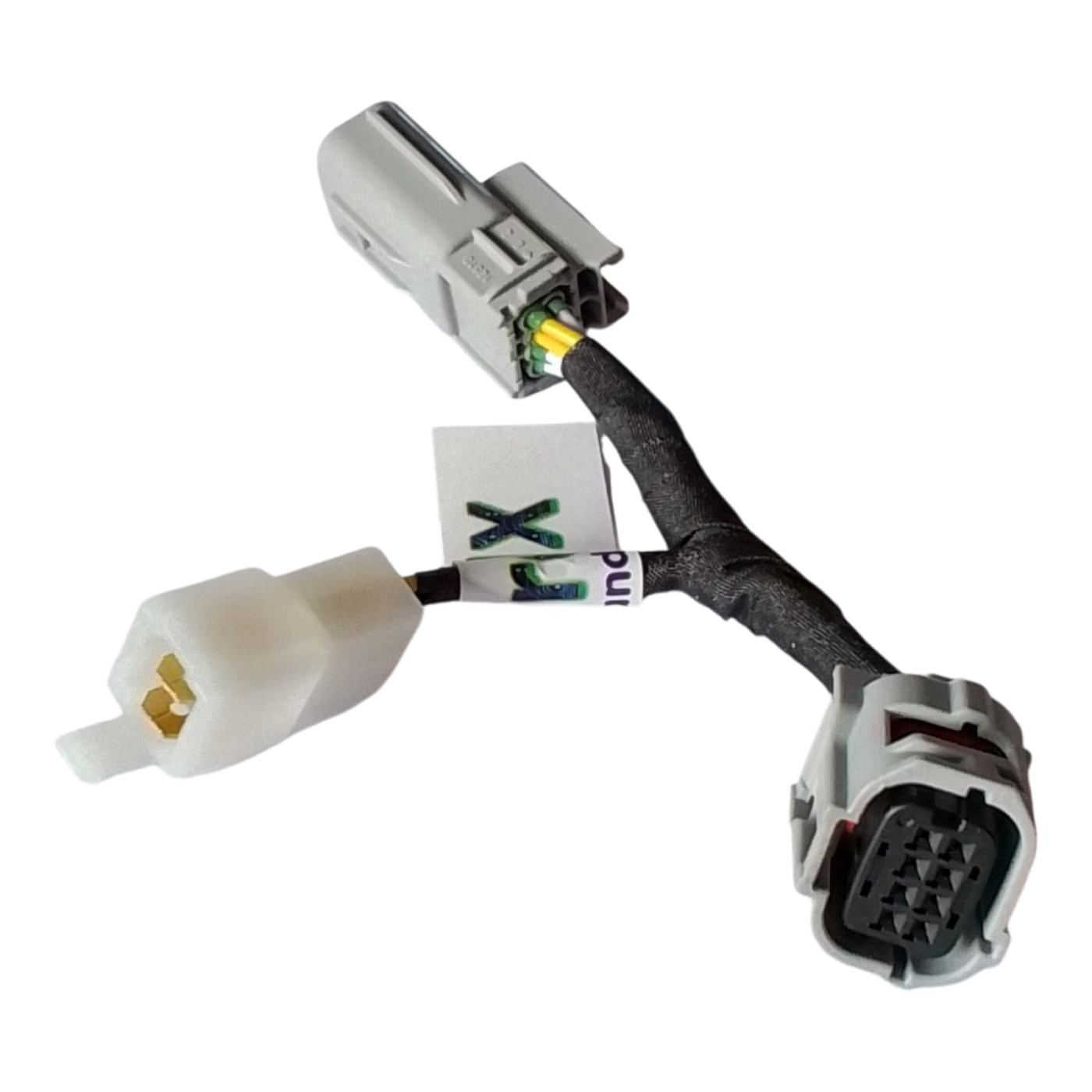

For installation, disconnect the transponder antenna connector and connect the dummy-key to the bike-side wiring harness. Insert the T-wiring between the removed key block wiring and the right-side handlebar controls.
Note: Version 1: Uses the red button on the stock right switchgrouop to power on the dashboard.
